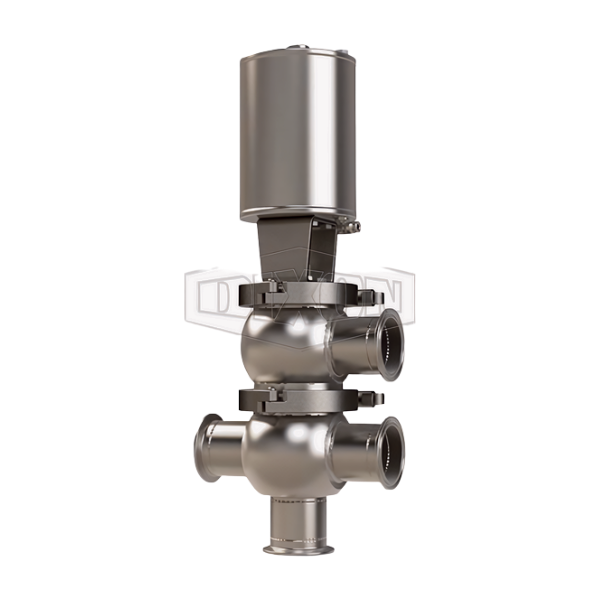

3" SSV-Series Single Seat Valve, Divert LT Body, Clamp, Double Acting Actuator (Air-To-Air)

3" SSV-Series Single Seat Valve, Divert LT Body, Clamp, Double Acting Actuator (Air-To-Air)

Regular price $2,760.55 USD
Regular price Sale price $2,760.55 USD
Sale Sold out
Shipping calculated at checkout.

Need custom lengths, sizes or fittings?

Click here for Custom Quotes Page

Whether you are looking for a custom sanitary transfer solution, need an 3A or FDA approved component part, or just searching for quantity pricing, submit a request for a custom quote today.

3" SSV-Series Single Seat Valve, Divert LT Body, Clamp, Double Acting Actuator (Air-To-Air) are used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets. 3A - authorization number 1655, 53-06 (compression-type valves).

Construction

  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
  • Products wetted seal elastomers: EPDM
  • Stem seal materials: EPDM

Description

  • Divert LT Body Clamp

Specifications

  • Maximum holding pressure: Chat with a specialist about max holding pressure for details as they are dependent upon size and configuration of the valve
  • Maximum operating temperature: 266°F (130°C)
  • Surface ID finish:< 32Rₐ
  • Maximum sterilization temperature (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant
  • Connection Type: Clamp
  • Stem Seal Type: EPDM O-Ring
  • Weight: 47.5 lbs
  • Elastomers: EPDM
  • Size: 3"
  • Material: 316L Stainless Steel
  • Actuator Type Plp: Pneumatic style: double acting (air-to-air)
