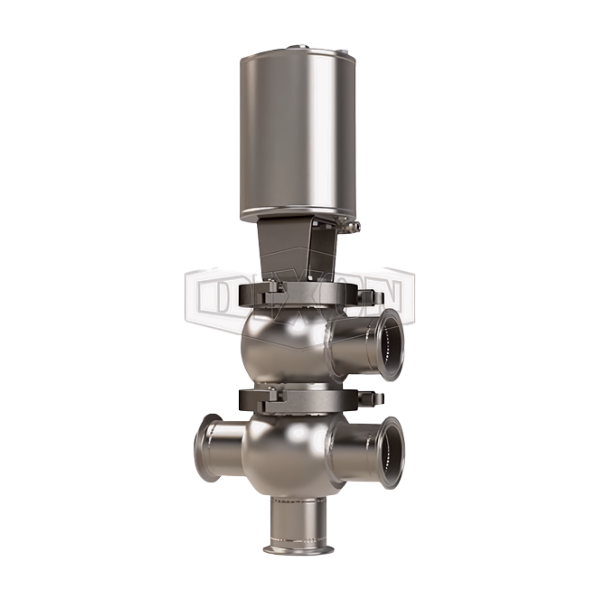

2" SSV-Series Single Seat Valve, Divert LT Body, Clamp, Double Acting Actuator (Air-To-Air)
2" SSV-Series Single Seat Valve, Divert LT Body, Clamp, Double Acting Actuator (Air-To-Air)
Regular price
$1,687.40 USD
Regular price
Sale price
$1,687.40 USD
Unit price
per
Shipping calculated at checkout.
Need custom lengths, sizes or fittings?
Need custom lengths, sizes or fittings?
Click here for Custom Quotes Page
Whether you are looking for a custom sanitary transfer solution, need an 3A or FDA approved component part, or just searching for quantity pricing, submit a request for a custom quote today.
Couldn't load pickup availability
2" SSV-Series Single Seat Valve, Divert LT Body, Clamp, Double Acting Actuator (Air-To-Air) are used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets. 3A - authorization number 1655, 53-06 (compression-type valves).
Construction
- All product contact steel components: 316L stainless steel
- All non-product contact steel components: 304 stainless steel
- Products wetted seal elastomers: EPDM
- Stem seal materials: EPDM
Description
- Divert LT Body Clamp
Specifications
- Maximum holding pressure: Chat with a specialist about max holding pressure for details as they are dependent upon size and configuration of the valve
- Maximum operating temperature: 266°F (130°C)
- Surface ID finish:< 32Rₐ
- Maximum sterilization temperature (20 min/max): 275°F (135°C)
- Elastomers are FDA and 3A compliant
- Connection Type: Clamp
- Stem Seal Type: EPDM O-Ring
- Weight: 22.3 lbs
- Elastomers: EPDM
- Size: 2"
- Material: 316L Stainless Steel
- Actuator Type Plp: Pneumatic style: double acting (air-to-air)
