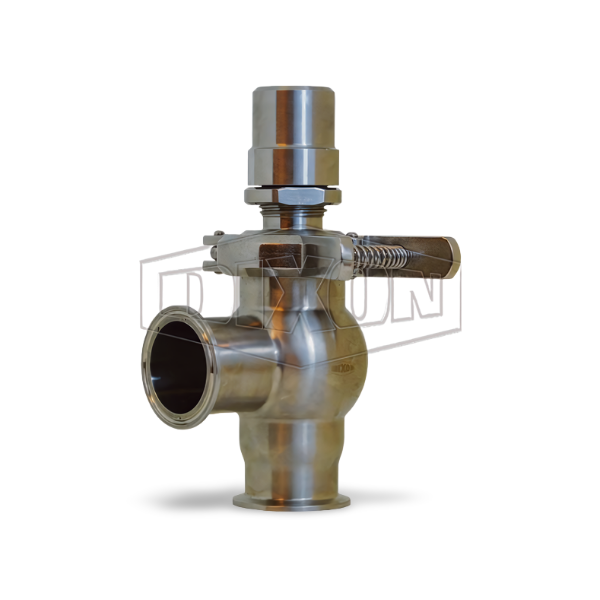

2" Sanitary Pressure Relief Valve L Style

2" Sanitary Pressure Relief Valve L Style

Regular price $1,046.06 USD
Regular price Sale price $1,046.06 USD
Sale Sold out
Shipping calculated at checkout.

Need custom lengths, sizes or fittings?

Click here for Custom Quotes Page

Whether you are looking for a custom sanitary transfer solution, need an 3A or FDA approved component part, or just searching for quantity pricing, submit a request for a custom quote today.

The 2" Sanitary Pressure Relief Valve L Style with clamp end connection is 3-A Certified and used by a variety of wineries, breweries, and distilleries as well as others in the food and beverage processing market.

Construction

  • Clamp End connection, others available on request
  • Wetted Product Surfaces: 32Ra, other surface finishes available
  • Product Contact: 316L Stainless Steel
  • Non product contact: 304 Stainless Steel
  • Actuation: Manual

Features

  • Valve opens when the set pressure is reached to prevent excess pressure in piping or systems
  • Valve body made from solid bar
  • Patented squeeze clamp
  • Order Note: Valves can be preset at the factory, advise set pressure at time of order if known.

Specifications

  • 3-A Certified
  • Sterilization: 300°F (148°C) maximum 20 minutes
  • Pressure Range: 10-50 PSI
  • Weight: 7.7lbs
  • Size: 2"
  • Material: 316 Stainless Steel
  • Style: L-Body
  • Seat: EPDM
  • Maximum Temperature: 266°F ( 130°C)
