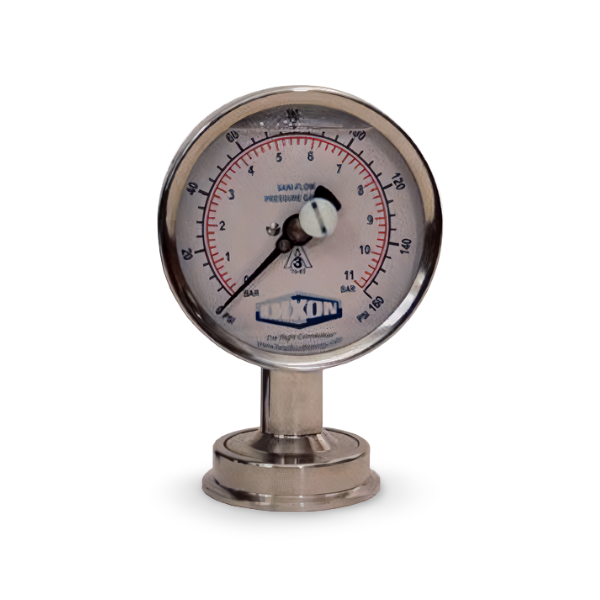

160 PSI Sanitary Pressure Gauge with 1.5" Clamp Size
160 PSI Sanitary Pressure Gauge with 1.5" Clamp Size
Need custom lengths, sizes or fittings?
Need custom lengths, sizes or fittings?
Click here for Custom Quotes Page
Whether you are looking for a custom sanitary transfer solution, need an 3A or FDA approved component part, or just searching for quantity pricing, submit a request for a custom quote today.
Couldn't load pickup availability
60 PSI Sanitary Pressure Gauge with 1.5" Clamp Size has wetted surfaces of 316L Stainless Steel with a polycarbonate lens, filled with food grade glycerin and case material of 304 stainless steel. With an accuracy of +/- 1.5% of full scale this sanitary pressure gauge is perfect for wineries and breweries requiring a 0-160 PSI pressure range.
Construction
Wetted Surfaces: 316L Stainless Steel
Surface Finishes: (wetted parts): Ra max = 25 micro inches
Lens Material: Polycarbonate
Standard fill: Food Grade Glycerin
Case Material: 304 Stainless Steel
Features
Rezero feature: standard on pointer
Specifications
Accuracy: +/- 1.5% of full scale
Over range capacity: 30%
3-1/2" Dial
Pressure Range: 0-160 PSI
Weight: 1lb
Size 1-1/2"
Material: 316L Stainless Steel
Component Material: Case - Glycerin Filled
Mount: Bottom
Fitting Type: Clamp
Temperature Range: 0°F to 250°F (-18°C to 121°C)
