1 1/2" Sanitary Pressure Relief Valve L Style
1 1/2" Sanitary Pressure Relief Valve L Style
Regular price
$924.37 USD
Regular price
Sale price
$924.37 USD
Unit price
per
Shipping calculated at checkout.
Need custom lengths, sizes or fittings?
Need custom lengths, sizes or fittings?
Click here for Custom Quotes Page
Whether you are looking for a custom sanitary transfer solution, need an 3A or FDA approved component part, or just searching for quantity pricing, submit a request for a custom quote today.
Couldn't load pickup availability

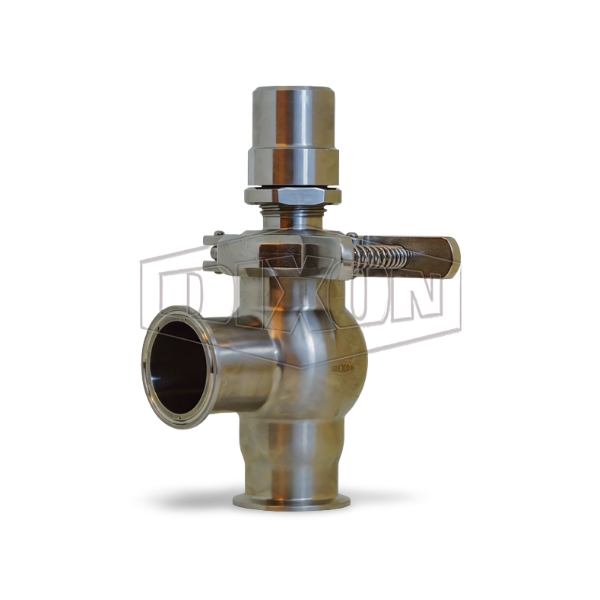

The 1 1/2" Sanitary Pressure Relief Valve L Style with clamp end connection is 3-A Certified and used by a variety of wineries, breweries, and distilleries as well as others in the food and beverage processing market.
Construction
- Clamp End connection, others available on request
- Wetted Product Surfaces: 32Ra, other surface finishes available
- Product Contact: 316L Stainless Steel
- Non product contact: 304 Stainless Steel
- Actuation: Manual
Features
- Valve opens when the set pressure is reached to prevent excess pressure in piping or systems
- Valve body made from solid bar
- Patented squeeze clamp
- Order Note: Valves can be preset at the factory, advise set pressure at time of order if known.
Specifications
- 3-A Certified
- Sterilization: 300°F (148°C) maximum 20 minutes
- Pressure Range: 10-50 PSI
- Weight: 6.2lbs
- Size: 1-1/2"
- Material: 316 Stainless Steel
- Style: L-Body
- Seat: EPDM
- Maximum Temperature: 266°F ( 130°C)
