DIXON Sanitary Clever Clamps - Consistent & Controlled Compression

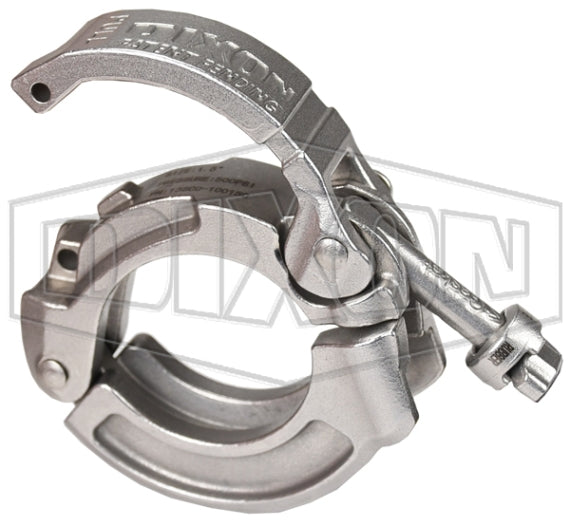

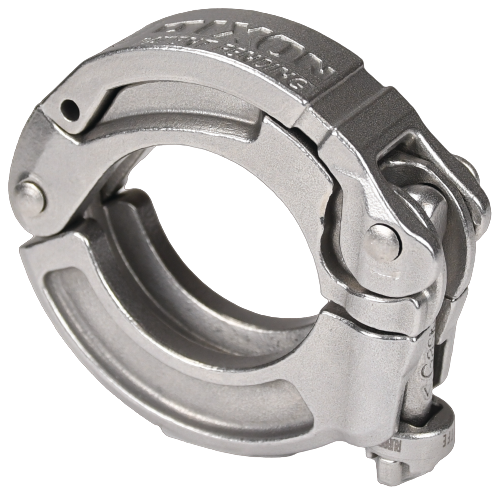

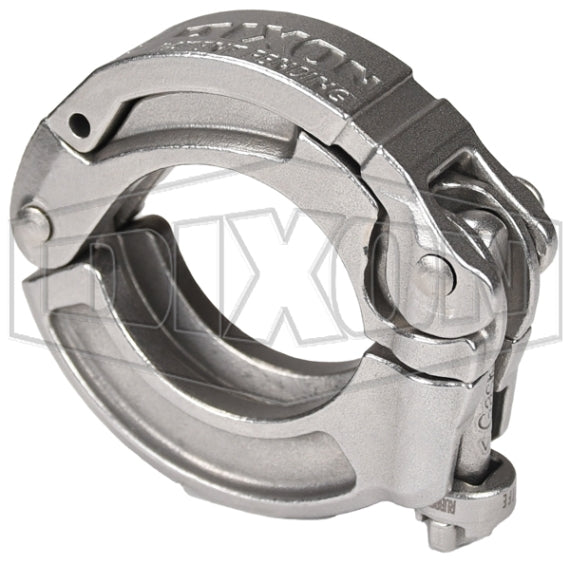

Dixon 13SCC-Series Sanitary Clever Clamp offers a new perspective on an age-old design. With its easy-to-use lever closure, it provides fast and consistent compression on both rubber and PTFE gasket connections every time. No torquing, no tools; just clamp and go.
Product Description of DIXON Sanitary Clamps
Application: For use on sanitary clamp connections. Approved for food and beverage use. Frequently used in Breweries, Wineries & Distilleries, Pharmaceutical; Dairy; Can be installed anywhere a traditional tri-clamp is used
Material: 304 Stainless Steel
Pressure Rating: 500 PSI at 70F | 300 PSI at 250F
Features: Consistent compression of the gasket with every use. No concern for damage to gasket from over compression or creating internal bacteria traps from over or under compression | ASME BPE capable | Adjustable for both rubber and PTFE gasket styles | Fast installation, no torquing tools required | Threadless design, eliminates risk of damaged threads | Lockout ready design | Self-locking lever and color-coding options available
Sanitary Clamps - Things to Remember
- Service ratings are based on hydrostatic tests using standard-molded NBR, EPDM, FKM & Silicone material gaskets, with proper installation of ferrules, assembly of joints and absence of shock pressure or water hammer.
- All ratings shown are dependent upon related components within the systems and proper installation of those components.
- For temperatures above 250°F, we cannot provide service ratings.
- Before installation, testing must be done under the specific conditions of your application. Verify specific gasket material temperature ratings.
- Brew Hose Supply offers single-pin sanitary Clever clamps, tri-clover clamps, and high-pressure clamps. Brew Hose Supply has all styles of sanitary clamps. Buy the best Sanitary Clever Clamp on www.brewhosesupply.com
